GA-MA manufactures radiogas sample containers that function both as a sample container and an analysis container. Radiogas containers are a substantial improvement over other small-volume metal or glass gas containers utilized in the nuclear power industry.
These containers will withstand up to 10 (PSIG) pressure. Appropriately sized valves facilitate the collection of gas samples and permit the flushing, venting and containment of gases. Quick-disconnect valves may be utilized with the RADIOGAS CONTAINERS.
GA-MA RADIOGAS CONTAINERS are available in 25cc or 100cc volume sizes. They are suitable for gamma spectrum analysis of radioactive gas samples containing moderate-tohigh levels of radioactivity; such as those found in nuclear power plant gas decay tanks and containment atmospheres. These containers are also in a geometric configuration to allow high level radioactive samples to be easily elevated from the detector; thus eliminating high dead-time problems due to very high count rates.
Radiogas containers are integral units made of high-quality, rigid, lightweight plastic materials that are resistant to corrosive gas mediums. Thin-wall construction provides greater detection sensitivities by minimizing the attenuation of low energy gamma rays, such as the 81 keV gamma line of Xe-133.

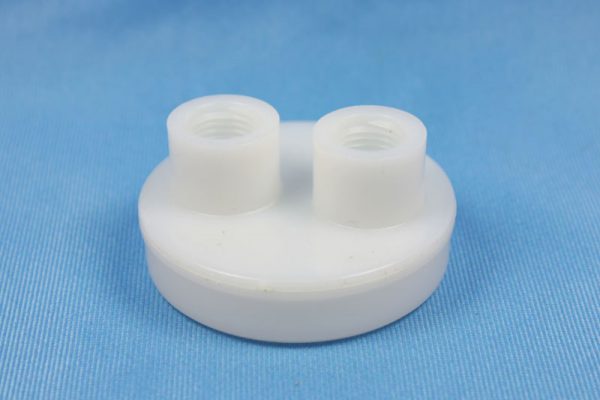

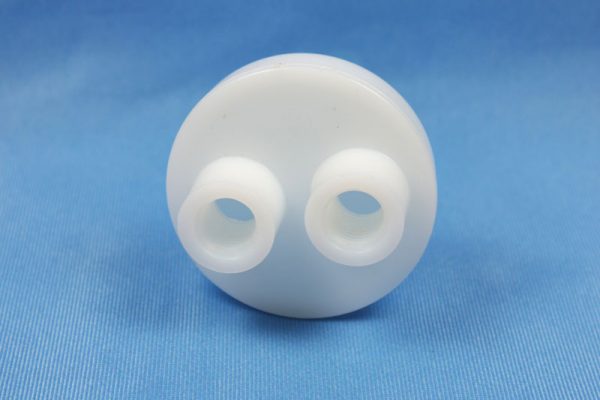

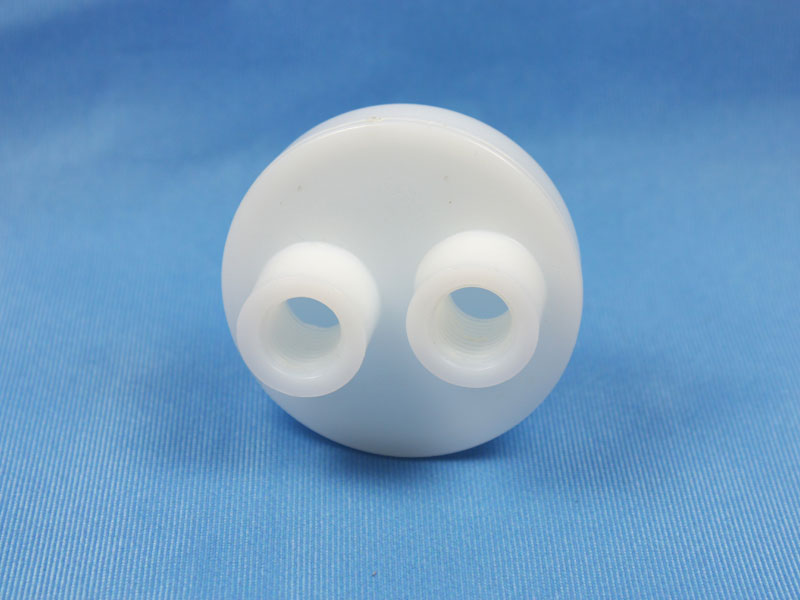

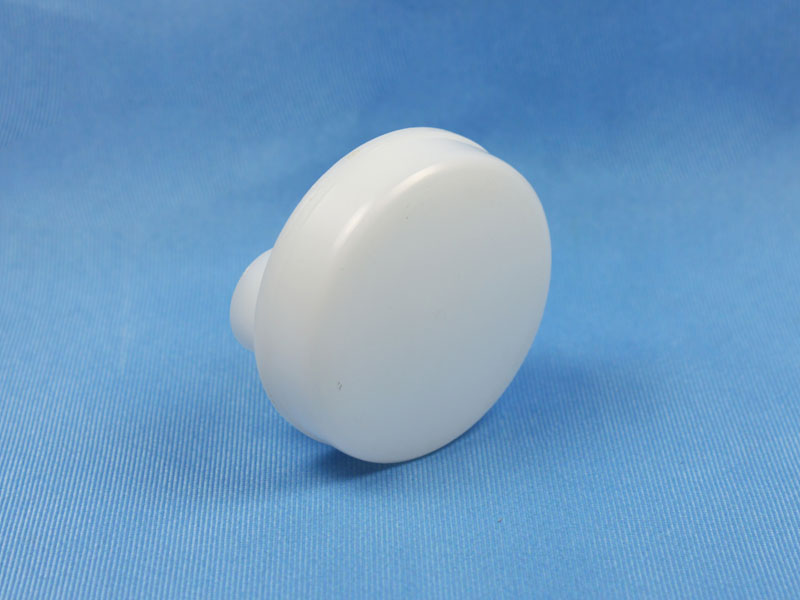

Model RG-25
- Height Without Valves: 1.13 inches (2.9 cm)
- Max. Diameter Without Vales: 2.29 inches (5.8 cm)

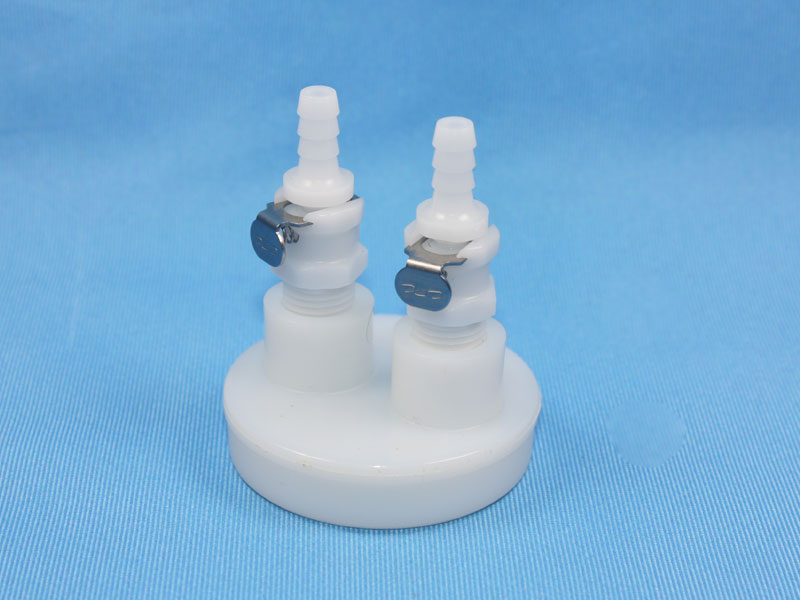

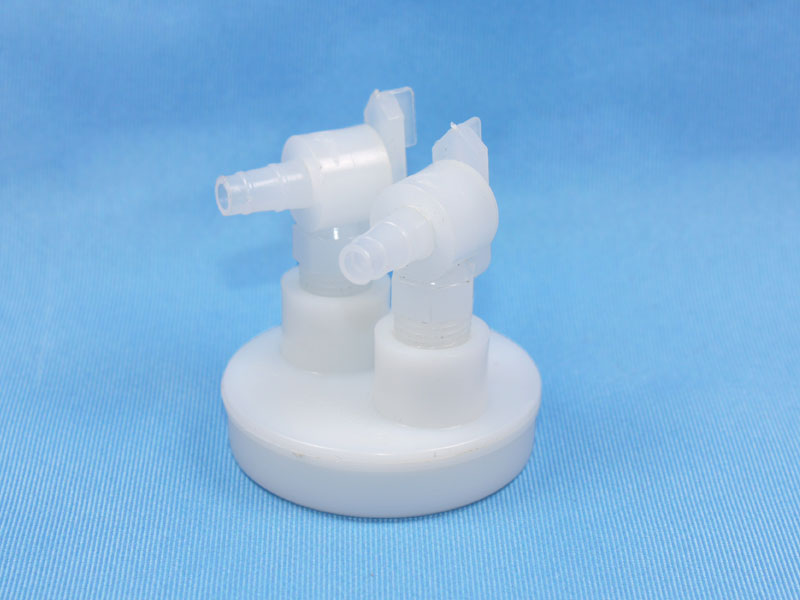

RG-25 Radiogas Containers With Vales

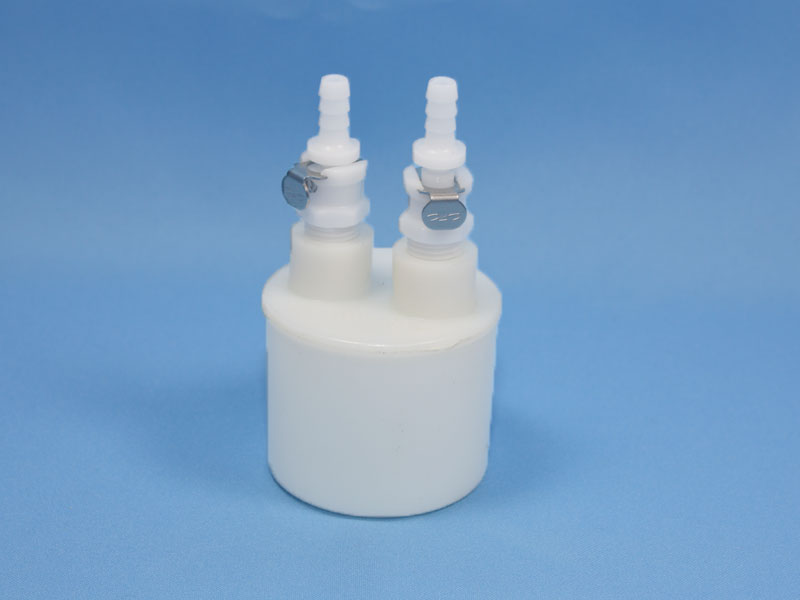

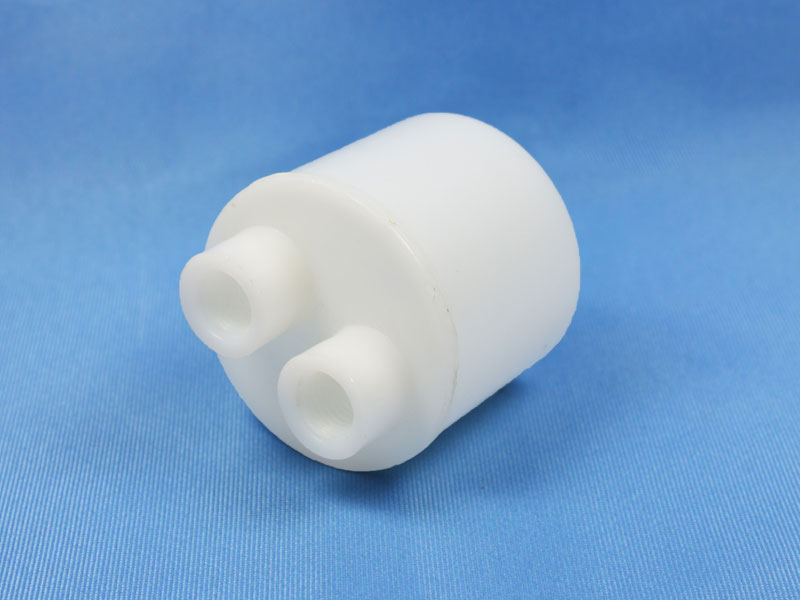

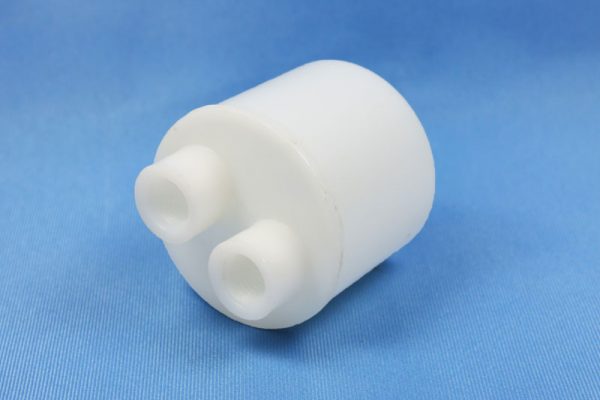

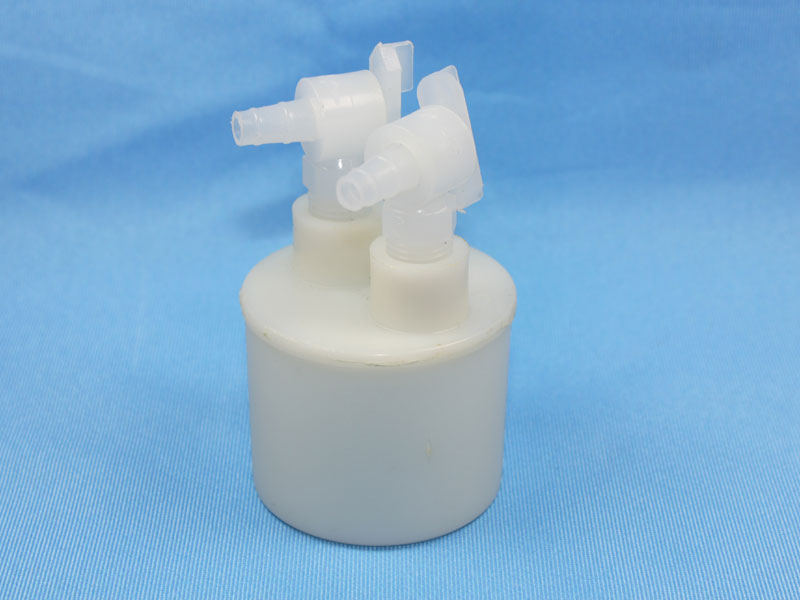

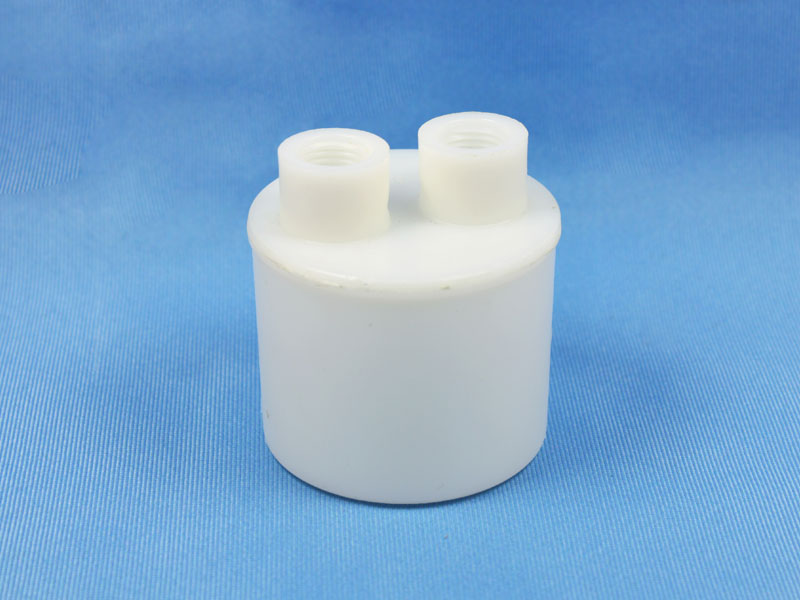

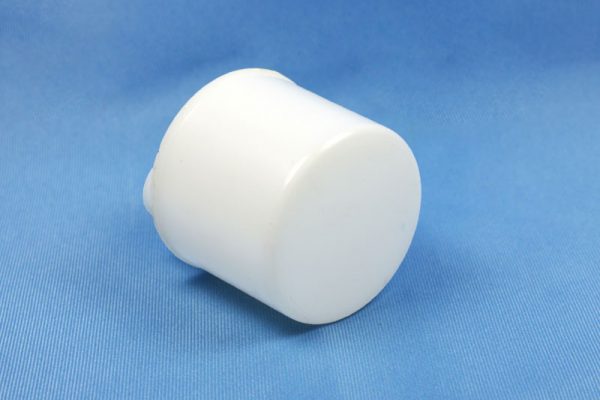

Model RG-100
- Height Without Valves: 2.46 inches (6.2 cm)
- Max. Diameter Without Vales: 2.29 inches (5.8 cm)
